Floor-standing Equipment Rack

Floor-standing Equipment Rack Features

• Standard 19” panel width (21.34” overall)

• Usable depth of 16.5″ without doors, 16″ with doors (17.5″ overall)

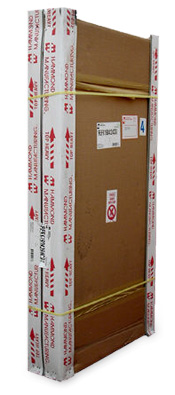

• Knockdown rack unit is shipped in a flat pack container for handling ease & protection (see below)

• Perfect for tight access areas or 1 person installations as unit is knocked down into 5 easy to handle parts (ie…2 sides, top, bottom and 4 panel rails)

•  Complete with; 4 infinitely adjustable – combination rack mount rails, on E.I.A. universal spacing (5/8 – 5/8 – 1/2 inch) – drilled & tapped for 10-32 screws (see close up below) and 4 leveling feet

• Removable gland plate (over 10″ long X 1.5″ high opening) with knockouts on rear bottom of rack for easy cable access (see below)

• Simple assembly using one bolt in each corner to lock the sides to the top and bottom (hardware included)

• Heavy duty 16 gauge steel top, bottom and sides
• Rails are made of 10 gauge steel (zinc plated finish for grounding capabilities)
• Recommended maximum weight, 1,000 pounds
• Finished in rugged textured powder paint
• Stocked in Black

17.5″ Deep models. Usable Depth = 16.5″ without doors, 16″ with doors

Key Features

Additional sizes, colors and accessories available.

Infinitely Adjustable (front to back) 10-32 Tapped, Zinc Plated, 10-gauge Steel, Panel Rails.
Rack ships with 2 pair included, shown here mounted to Amhal Strut.

Gland Plate Opening For Easy Wiring Access.
Bottom, rear of rack – 1.5″ high.

Interlocking Sides.
To both the top & bottom (shown).

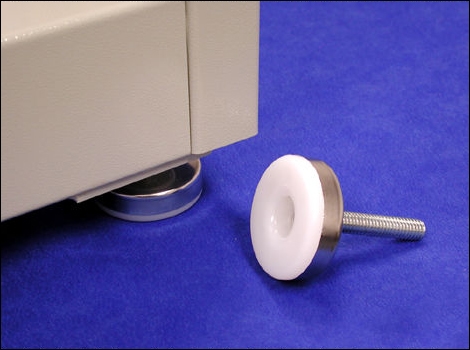

Over Sized (1.67″ Diameter) Nylon Based – Leveling Feet Included

Panel Rail Mounted Heavy Duty Shelf

• Allows easy rack mounting of narrow equipment or items that do not have rack mounting capabilities.
• Shelves feature formed 14-gauge steel construction
• 15″ Deep x 3.5″ (2U) high = 100 pound weight load rating
• Rear lip stiffener folded up for extra strength & acts as a rear equipment retainer
• Mounts to rack rails either as an internal shelf or external shelf/work area
• Rugged textured – powder paint finish
• Requires mounting hardware

Two Post Mounting Keyboard & Equipment Shelf (100 lbs Weight Capacity)

• Constructed of 14-gauge steel.
• Mounts to rack rails using 3.47″ (2U) of vertical rack space.
• Rear lip to reduce chance of equipment being pushed off rear of shelf.
• The new ergonomic designed keyboard tray, supports a full-size keyboard.
• Finished in rugged textured black powder paint.
• Tested to nearly double the suggested load rating of 100 lbs (45 kg).
• TAA Compliant
• RoHS and REACH compliant.
• Manufactured in North America.

Medium Duty Caster Set

• Features ball bearing swivel and hard composition wheels.
• Wheels are gray in color.
• Caster set has a weight capacity of 800 lbs.
• Includes mounting hardware.
