Alpha MED Accessories

Home|Alpha MED64 MEA System|Alpha MED Accessories

The MED64 is designed to be user friendly without requiring extensive time to install the system and build accessories.

All our accessories are designed and extensively validated in-house so that they are “turn-key” ready for any experiment.

Perfusion

Perfusion Cap

Perfusion Cap (MED-KCAP01)

  • Neatly fits into the top of a MED Probe.
  • Features adjustable solution inflow and outflow pipes, a platinum reference electrode, and a port for delivery of gas.
  • Easily removed and replaced for slice mounting.
  • Suitable for MED Probe with 10 mm chamber height.
  • Pre-configured perfusion tubing available for immediate use.
Perfusion Pipe Holder Kit

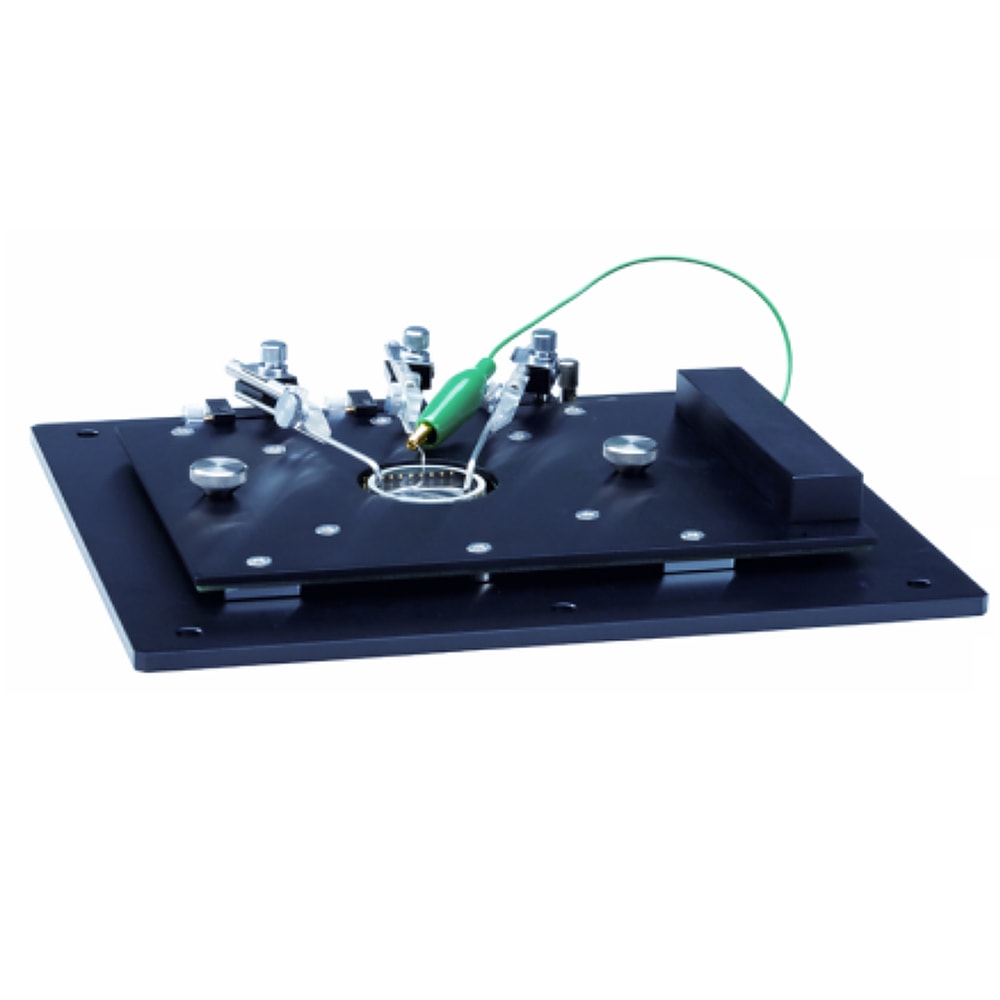

Perfusion Pipe Holder Kit (MED-KPK02)

  • Installed onto the MED (Heated) Connector.
  • Features adjustable solution inflow and outflow pipes, and a platinum reference electrode.
  • Suitable for MED Probe with 5 mm chamber height.
  • Pre-configured perfusion tubing available for immediate use.

Temperature Control

Thermo Base

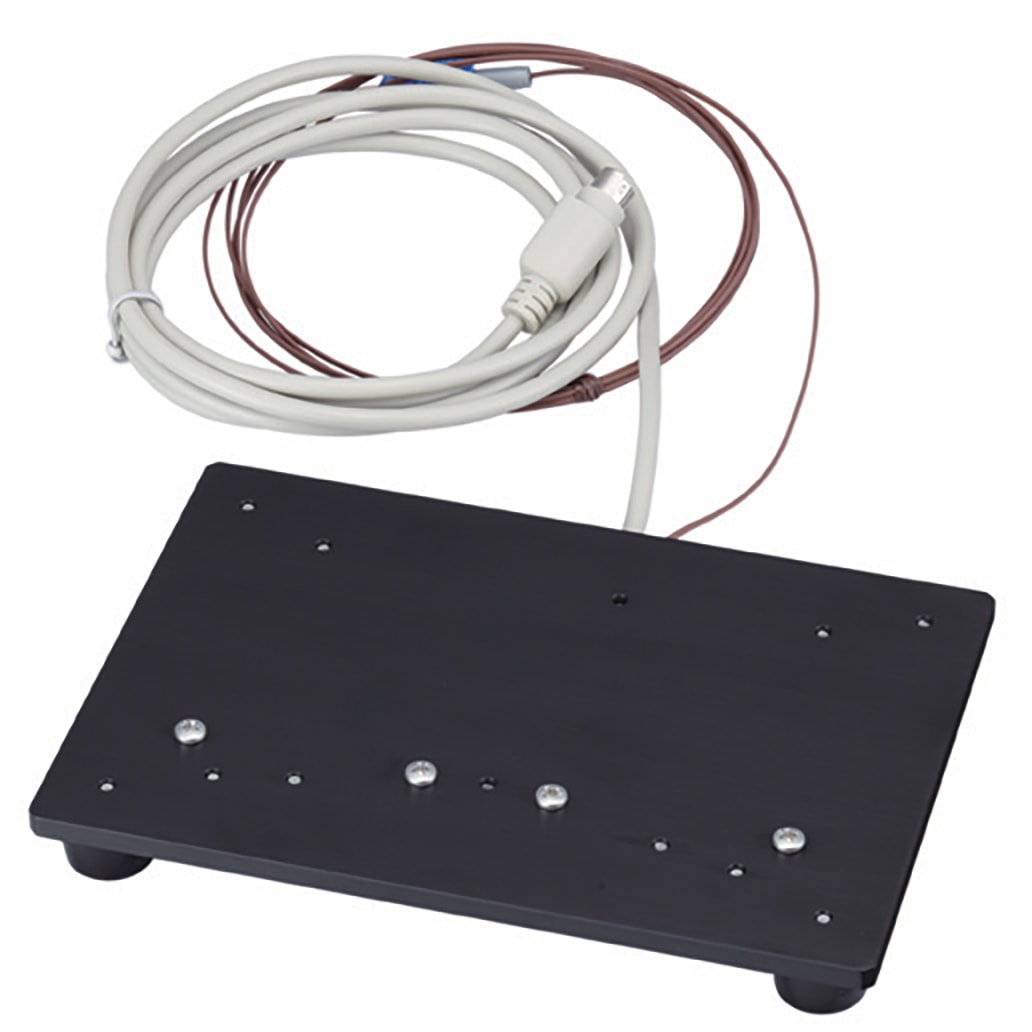

MED64 ThermoBase (MED-CPB01)

  • Heating pad for 1 of MED Multi-well Connector or 2 of MED Mini Connector.
  • Bath temperature in the MED Probe is maintained using a ThermoClamp® 1 controller.
MED-CPB01-Specifications

Microclimate

MED Connector Cover (MED-CC01 / MED-CC02 / MED-CC03)

MED Connector Cover (MED-CC06 / MED-CC02 / MED- CC03) Covers the entire MED Connector and helps to maintain the bath temperature in the MED Probe.

  • MED Connector Cover (MED-CC06 / MED-CC02 / MED- CC03) Covers the entire MED Connector and helps to maintain the bath temperature in the MED Probe.
  • Built-in oxygen port.
  • Easy drug delivery port on top of the lid.
  • Available with 3 different sizes to fit all types of Connectors.
    • MED-CC06 : for MED-CP04
    • MED-CC02 : for MED-C04 or MED-C05 with ThermoBase
    • MED-CC03 : for MED- C11 with ThermoBase

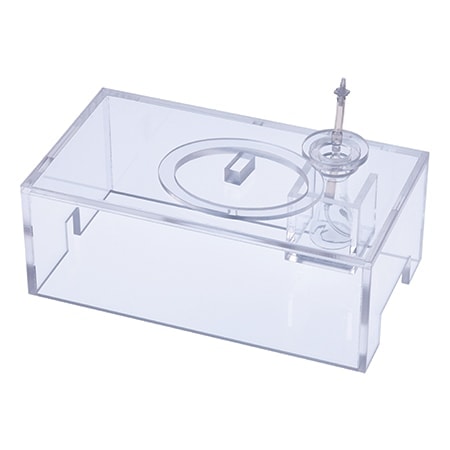

MED-CC06 with Connector

MED Connector Cover (MED- CC06) with MED ThermoConnector

MED-CC03

MED Connector Cover (MED-CC03) with MED Multi-well Connector

Other

Multiplexer

MED64 Multiplexer (MED-A64SF1 / MED-A64SF2)

  • Multiplexer used for the MED64 Plex 4/8 System.
  • Allowing time-sequenced acquisition from 4 or 8 samples.

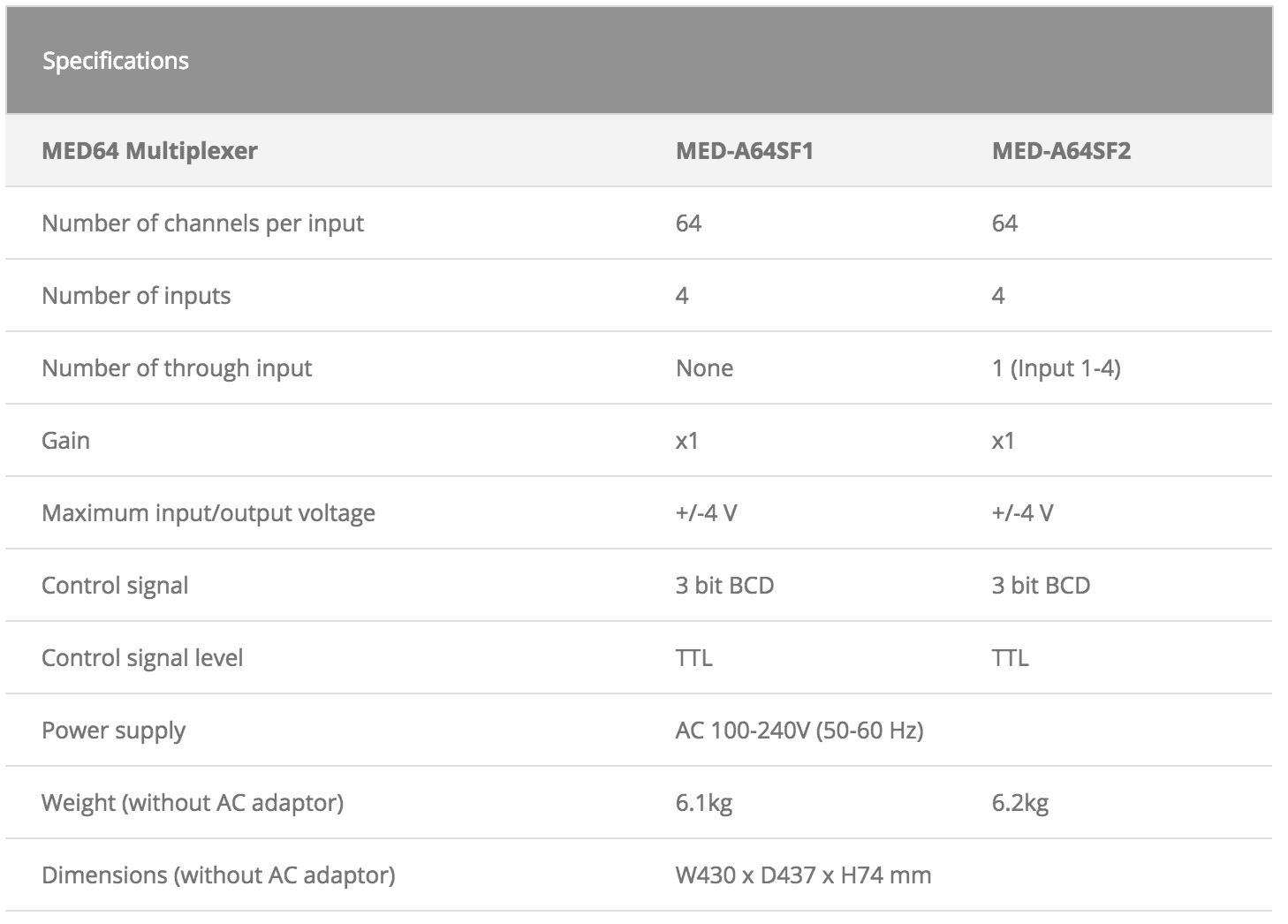

MED64 Multiplexer Specifications
