MED Probe

MED Probe for Basic / Plex System

The standard MED Probe has 64 microelectrodes and is available with 2 types of (5 mm or 10 mm height) chamber height. Special arrangement (Hippocampal array, Hexagonal) and probe for multi- sample processing are also available.

Standard 8×8 array

Standard 8×8 Arrays
Mouse Hippocampus CA1 P210

MED-P210A/5 (0.7 mm)
Mouse Hippocampus CA1

Mouse Hippocampus P515

MED-P515A/5 (1 mm)
Mouse Hippocampus

Rat Hippocampus CA1 515

MED-P515A/5 (1 mm)
Rat Hippocampus CA1

Rat Hippocampus 530A1

MED-P530A/5 (2 mm)
Rat Hippocampus

Rat Hippocampus Peripheral 5451

MED-P545A/5 (3 mm)
Rat Hippocampus and Peripheral Area

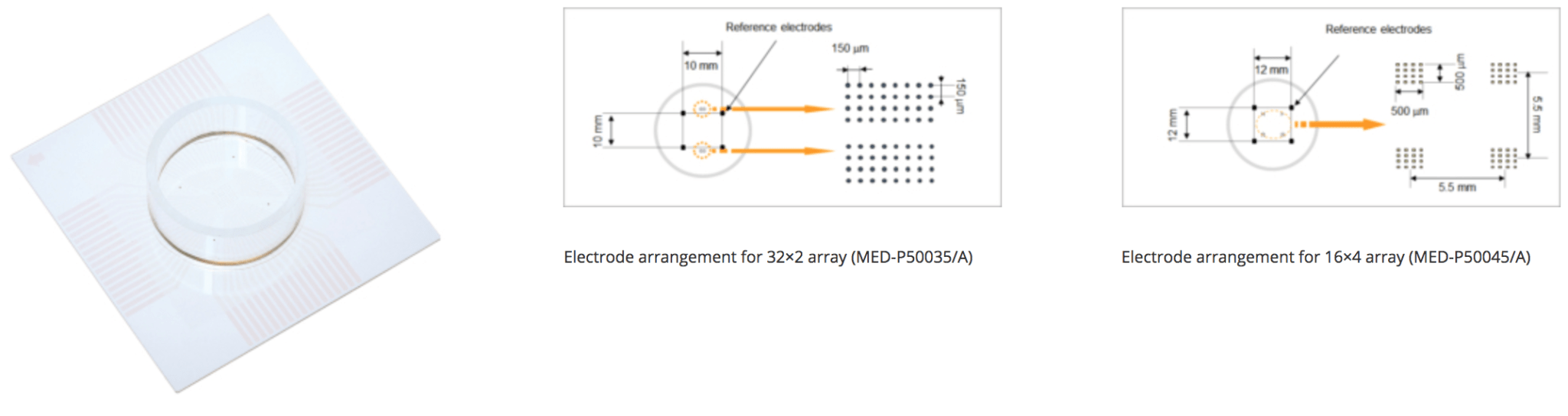

32 x 2, 16 x4 Arrays

32x2 16x4 Arrays

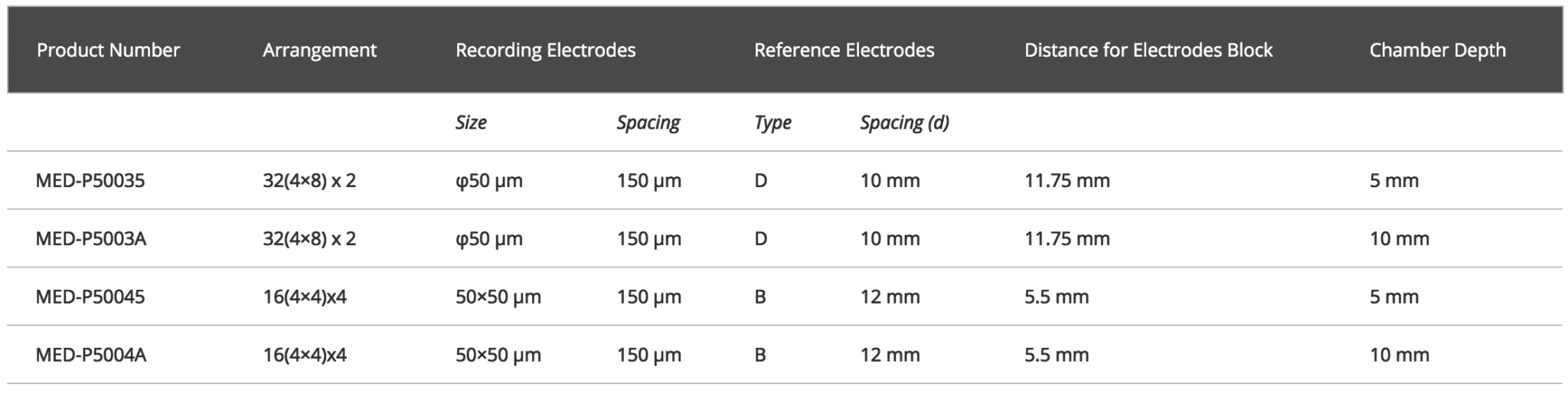

32x2 16x4 Arrays Specifications

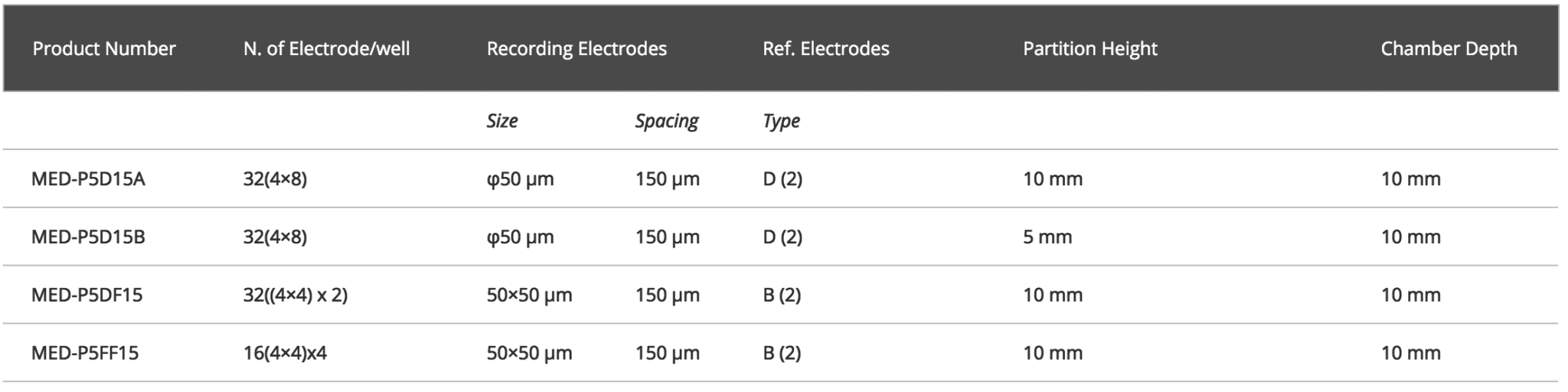

Multi-sampling (2 or 4) Probe

Multi-sampling 2 or 4 Probe
Multi-sampling 2 or 4 Probe

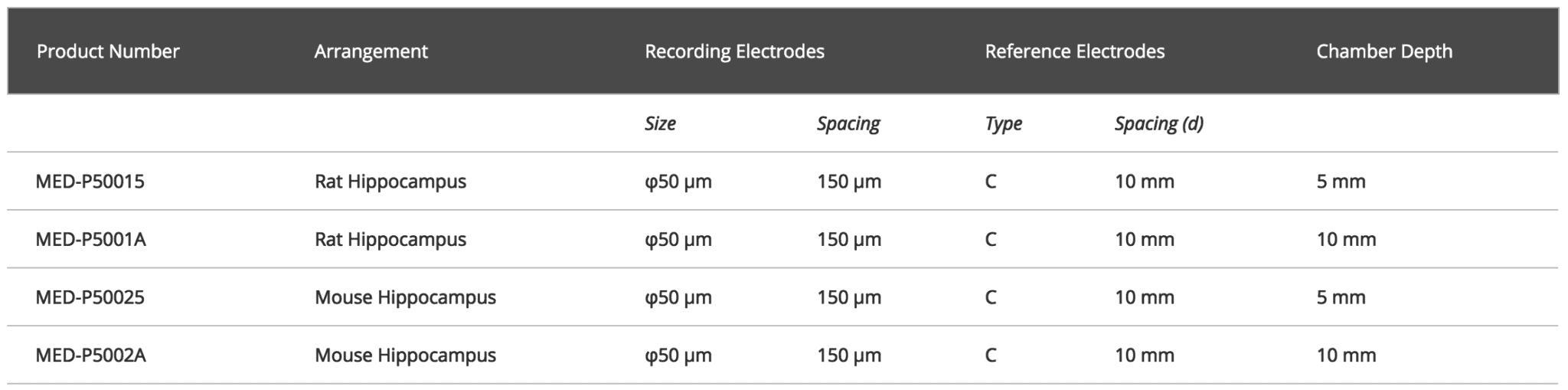

Hippocampal Pattern Arrays (CA1, CA3, DG)

MED P5001A

MED-P50015/A
Micrograph of rat hippocampal slice and arrangement of microelectrodes

MED P5002A

MED-P50025/A
Micrograph of mouse hippocampal slice and arrangement of microelectrodes

Hippocampal Pattern Arrays

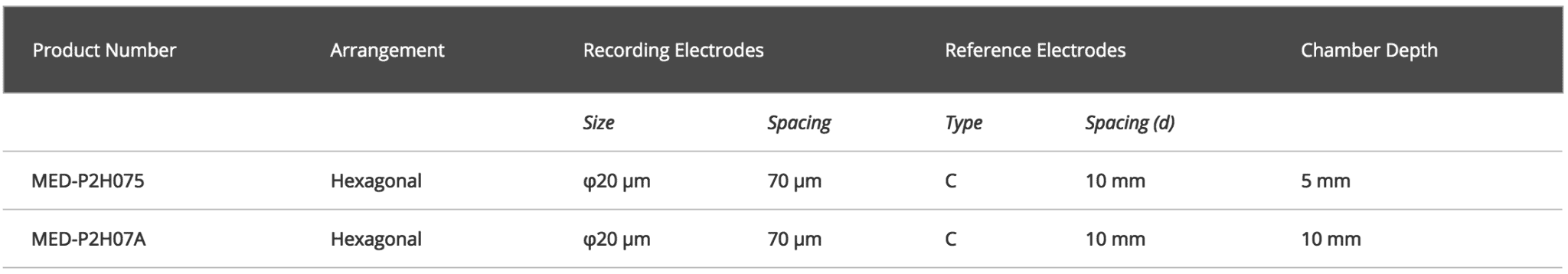

Hexagonal Arrays (61 electrodes)

MED P2H07A

MED-P2H075/A

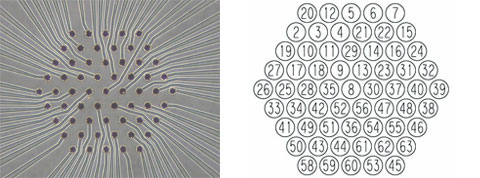

Micrograph of electrodes and arrangement of microelectrodes.

Hexagonal Arrays
Request a Quote
Manual
MED Probe Electrode, zoom

Zoom view of the microelectrodes in the MED-P515A
