The MED Connector holds and connects the MED Probe (MEA) to the amplifiers. Thanks to the MED Probe’s lowest-impedance electrodes the MED Connector holding the MED Probe is connected to the amplifier with 2m-long cable, that does not generate signal attenuation. This unique MED64 system configuration will provide the great flexibilities for your experiments.

For Basic / Plex System

MED64 Connector

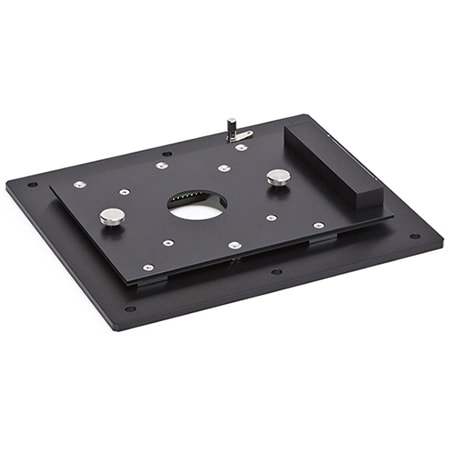

MED Connector (MED-C03)

  • No active onboard electrical circuitry; Connectors can safely be placed in a humidified environment (e.g. cell culture incubator).
  • Provides clear optical path through MED Probe for microscopy.
  • Provides a mechanically-stable platform for the MED Probe.

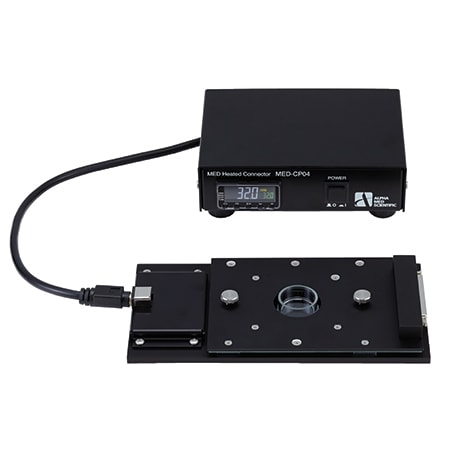

MED ThermoConnector (MED-CP04)

  • Heater and thermocouple sensors are incorporated into the bottom unit of the MED Connector.
  • Bath temperature in the MED Probe is maintained using a dedicated temperature controller.
  • Can be used with or without perfusion. Included tubing through connector provides in-line solution heating.
  • Aperture in the unit bottom allows observing biological samples with microscope.

For Quad II System

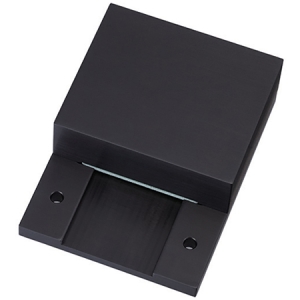

MED Mini Connector (MED-C04)

  • Connector for the MED64-Quad II System.
  • Used for communication between the MED Probe 16 and the MED64 Head Amplifier.
  • No active onboard electrical circuitry; Connectors can safely be placed in a humidified environment (e.g. cell culture incubator).
  • Compact design, easy-to-load the MED Probe.
  • Compatible with the 4×4 or 2×8 Probes (needs to be pre-configured).
MED-C05

MED Duet Connector (MED-C05)

  • Connector for the MED64- Quad II System.
  • Used for communication between the MED Probe 16 and the MED64 Head Amplifier.
  • 2 sets of MED Probe 16 is installed into.
  • No active onboard electrical circuitry; Connectors can safely be placed in a humidified environment (e.g., cell culture incubator).
  • Compact design. Easy-to-load MED Probe.
  • Compatible with all types of MED Probe 16.

For Allegro System

MED-C11

MED Multi-well Connector (MED-C11)

  • Connector for the MED64-Allegro System.
  • Used for communication between the MED Multi-well Probe and the MED64 Head Amplifier.
  • No active onboard electrical circuitry; Connectors can safely be placed in a humidified environment (e.g. cell culture incubator).
  • Compact design.
  • Easy–to-load the MED Probe.
Request a Quote
Manual

MED64 Connector (MED-C03)

MED Probe securing mechanism:
Screw down

Material:
Aluminum, Gold plate for contact pins

Contact resistance:
< 30 mΩ

Printed wiring:
4 layer
– 1st, 4th : ground,
– 2nd, 3rd : signal line

Weight:
480 g

Dimensions:
W174 x L150 x H21 (mm)

MED ThermoConnector (MED-CP04)

– CONNECTOR UNIT –

MED Probe securing mechanism:
Screw down

Material:
Aluminum, Gold plate for contact pins

Contact resistance:
< 30 mΩ

Printed circuit board:
4 layers
– 1st, 4th : ground,
– 2nd, 3rd : signal line

Heating device:
Transistors (2)

Temperature accuracy:
<+/- 1°C (for solution in the MED Probe)

Range of verified:
<1°C accuracy 32°C – 37°C (RT=25°C)

Weight:
510 g

Dimensions:
W200 x D20 x D105 (mm)

– TEMPERATURE CONTROLLER –

Temperature control unit:
OMRON E5GC

Controlling method:
Auto-tuning PID temperature control

Resolution:
0.1°C

Power supply voltage:
DC ±12V

Consumption current:
+1A, -0.1A (typ.) / +2A (max.)

Weight:
350 g

Dimensions:
W150 x D110 x H50 (mm)

Power supply unit, Input:
AC 100-240 V (50-60 Hz)

Power supply unit, Output:
DC ±12V

MED Mini Connector (MED-C04)

Number of Probe to be loaded:
1

MED Probe securing mechanism:
Slide in

Material:
Aluminum, Gold plate for contact pins

Weight:
190 g

Dimensions:
W60x x L83 x H24 (mm)

MED Duet Connector (MED-C05)

Number of Probes to be loaded:
2

MED Probe securing mechanism:
Slide in

Material:
Aluminum, Gold plate for contact pins

Weight:
385 g

Dimensions (mm):
W130 x L80 x H30 (MED-C05)

MED Multi-well Connector (MED-C11)

MED Probe securing mechanism:
Slide in

Material:
Aluminum, Gold plate for contact pins

Weight:
700 g

Dimensions:
W210 x L83 x H34 (mm)

ThermoClamp® Temperature Controller Specifications

Temperature controller:
Auto-tuning PID (Proportional Integral Derivative ) temperature control

Resolution:
0.1 °C

Set range:
Ambient – 50°C

Power supply:
AC 100-240V, 50/60Hz

Maximum power consumption:
80W

Dimensions:
W295 x H58 x D201 mm

Weight:
1.0 Kg
