MED64 Plex4-8

Medium throughput system for recording from 64 electrodes on 4 or 8 samples

MED64 Plex 4/8 System is a medium throughput MEA system allowing recording at all 64 electrodes from 4 or 8 samples. The MED64’s high fidelity will provide more accurate and reliable data allowing advanced screening.

  • Acquire extracellular signals from 4 or 8 samples (64 electrodes per sample).
  • Stimulation through 1 or to 2 electrodes per sample sequentially.
  • Unrivaled signal-to-noise ratio of 0.8 μV RMS noise level.
  • Large current-driven stimulation via any electrode.
  • Recording inside of a humidified incubator.
  • One system can be used for multiple experiments with its amplifier’s broad acquisition bandwidth and analog lowpass/highpass filter.
  • Analyze data online during your experiment or offline after.
  • Suitable for acute slices, slice cultures, and cell cultures.
  • Low-cost upgrade from MED64-Basic/QuadII/Allegro System.
MED64 Allegro Specifications

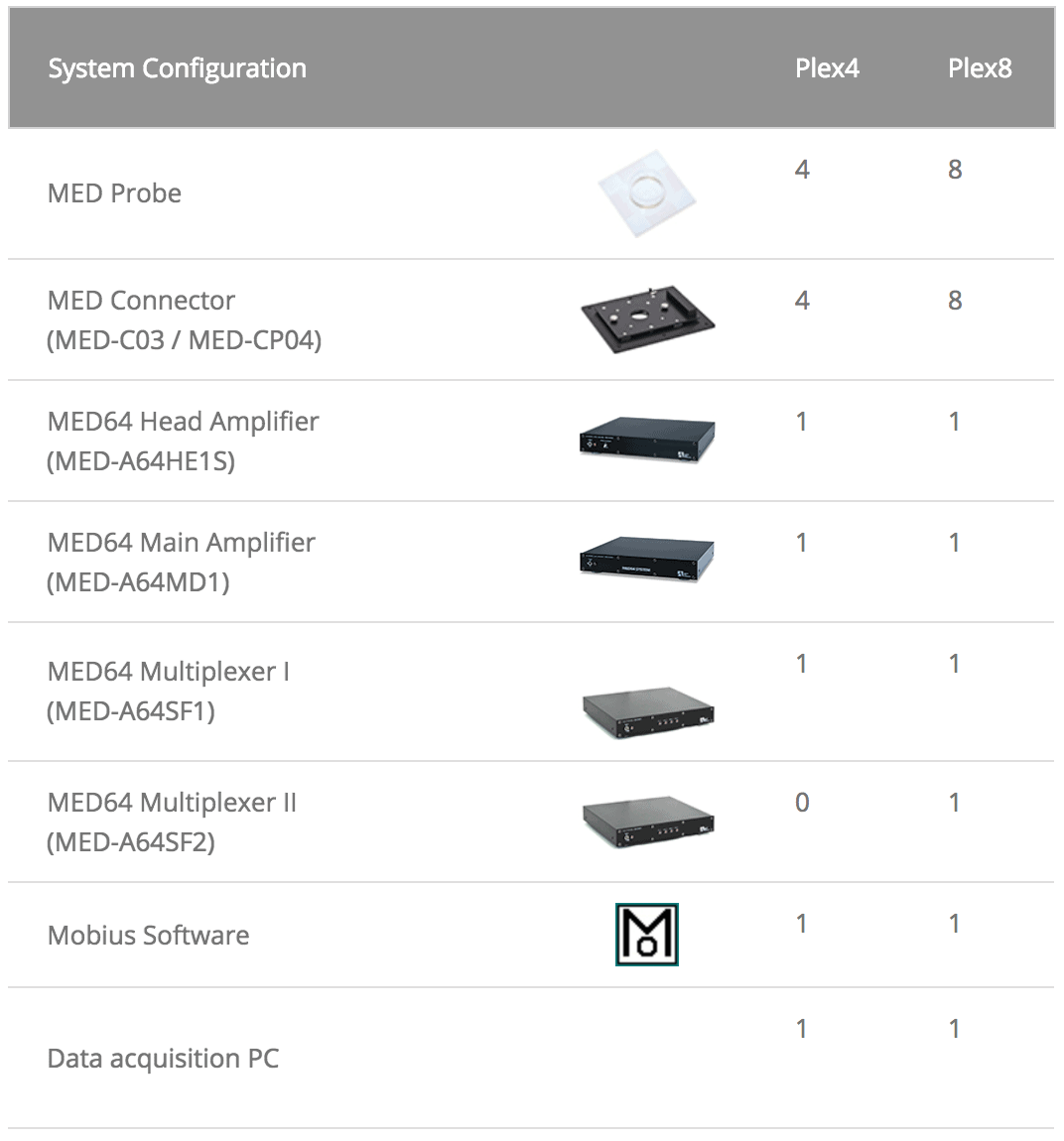

MED64  Plex 4/8 System Configuration

MED64 Plex 4/8 System Configuration
