Manual Microinjector

Manual Microinjector

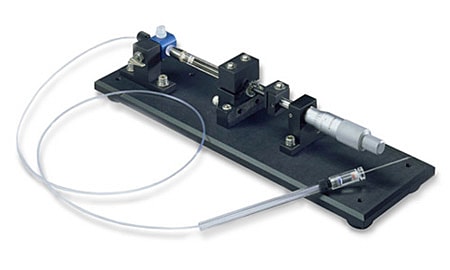

The Manual Injector is a manual syringe driver for pneumatic or hydraulic control of injection needles or holding pipettes. It is suitable for injecting volumes in the nanoliter to microliter range. It is also widely used as a fluid control device for IVF applications requiring sensitive manual control of the displacement of microneedle contents.

The system is constructed from the highest quality parts. The base assembly is black anodized aluminum. A non-rotating Mitutoyo micrometer provides the drive to the gas-tight syringe*. A precision 3-way valve provides a convenient method for filling the fluid line and clearing air bubbles from the line. PTFE inert tubing, chromatography connectors and a pipette holder complete the system.

The injection resolution is dependent on the volume of the syringe that is installed, as outlined in the table on the previous page. For example, with a 25ul syringe installed, one complete rotation of the micrometer (25 divisions) yields a displacement equivalent to a volume of 267nl and turning the micrometer one division (0.001in) yields 10.6nl.

*Please specify the syringe volume that you will be using.

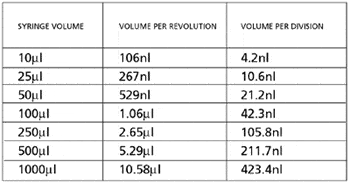

Manual Microinjector Table
Shop Now
Brochure

Specifications

Dimensions
37in x 19in x 19in
94cm x 48cm x 48cm

Weight
80 lbs
36 kg

Electrical
115/230 volts
50/60 Hertz power line
