Microscope Stage Chamber -4: Submerged – Inverted Scope

Microscope Stage Chamber -4: Submerged – Inverted Scope

$453.00

Microscope Stage Chamber -4: Submerged – Inverted Scope

SKU: S-MSC4 Category:

Description

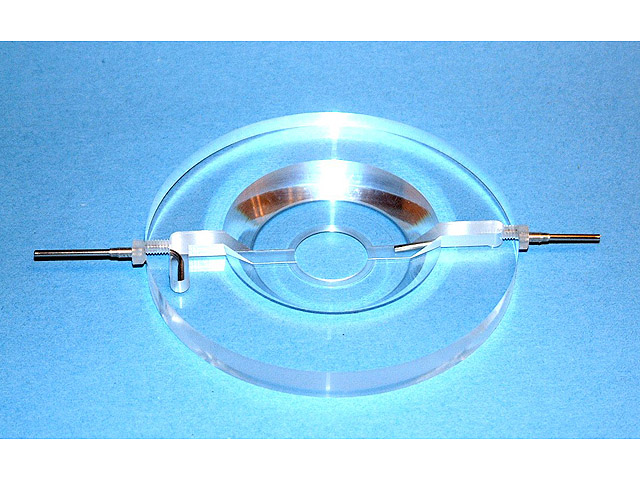

The MS-4 chamber has been designed for use with all inverted microscope stages. The simple design consists of an input and output channel arranged so that the glass coverslip area remains filled with perfusion solution. The slices rest on the glass coverslip arranged to be at the focal plane of microscope objective and access for condenser optics from above. Adaptor plates are available for various microscope stages.

1 ml capacity flow through inverted microscope stage chamber
Glass coverslip base
Temperature control unit available

Perfusion solution enters from one side via a stainless steel tube and exits through an ’L’ shaped well in which a movable tube attached to a pump / suction line adjusts the fluid level. Solutions can be pre-warmed before entering the chamber with our ThermoClamp. Perfusion solution forms a pool around the preparation whilst being refreshed by virtue of the inlet and exit ports.

Specifications

Size: 100mm diameter X 10mm thickness
Material: Clear acrylic
Coverslip base: 22mm X 150um thickness, borosilicate glass. Attached to base of chamber with silicone rubber sealant.
Inlet tube: Stainless steel tube, 1.81mm O.D. pushed into 10-32 UNF fitting.
Exit tube: As for inlet tube
Dead space: Min. capacity of pool formed above coverslip and channels leading to inlet and exit ports is 1ml.

Catalog number: S-MSC4
Parent Category: Microscope Stage Chambers
Application: Brain Slice & Tissue Chambers

For full web page, please see https://www.autom8.com/brain-slice-tissue-chambers-overview/msc4-submerged-inverted

Download a brochure at https://www.autom8.com/wp-content/uploads/2016/07/AM-ms4flyer.pdf

Additional information

Weight .2 lbs
