SmartSquirt8 ValveBank Micro-Perfusion System

SmartSquirt8 ValveBank Micro-Perfusion System

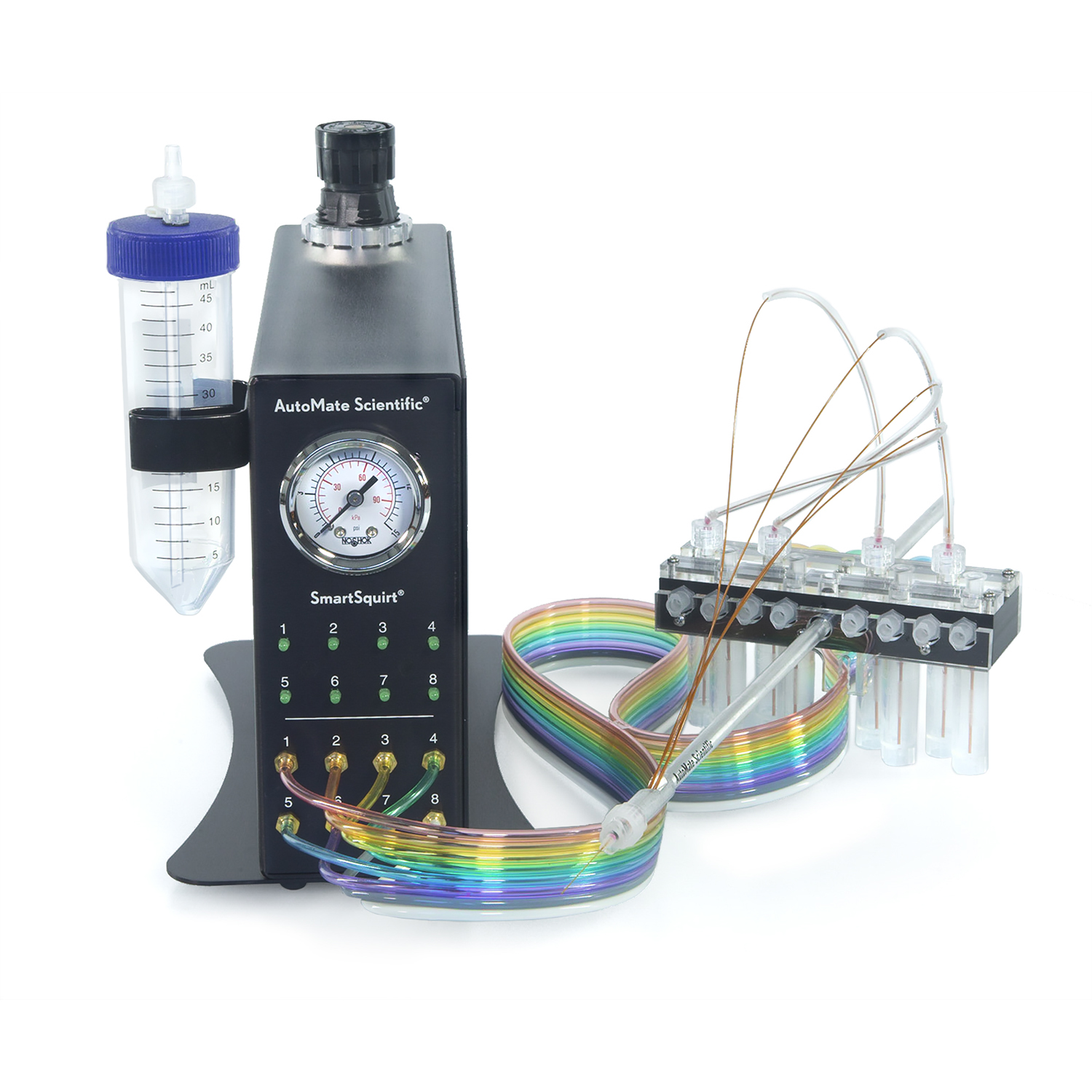

SmartSquirt®8 ValveBank® Micro-Perfusion System with SmartSquirt Valve Pressure Unit, Reservoir Block & ValveBank8 controller. Includes 8-channel Perfusion Pencil® & 250µm Tip.

This product is currently out of stock and unavailable.

SKU: parent_07-VB-08-xxx Category:

Description

For programmable dispensing, microinjection, perfusion or spritzing of reproducible microliter volumes. Pulse a valve quickly for microliter delivery, or leave it on for constant perfusion. The short delivery path saves expensive reagents.

• Deliver microliter volumes starting with as little as 100 microliters of precious drugs
Switch between eight solutions in milliseconds from a single tip

• Minimize cross-contamination with BackStop™ backflow prevention
One-way check valves inside the reservoir block prevent liquid backflow from the tip.

Features:
Uses standard 2.5ml cryo-tubes as reservoirs
Special 3-way valve design stops liquid flow quickly
Convenient micromanipulator mounting (manipulator not included)
Easy ports for refilling reservoirs
Low noise design for electrophysiology

Valves and pressure controls housed in a small box near microscope – no stand necessary. Includes one, pressurized large volume reservoir for buffer.

Can be combined with an AutoMate Scientific ThermoClamp-1™ for temperature-controlled delivery.

System includes:
• ValveBank8 valve controller
• SmartSquirt Valve Pressure Unit with built-in valves, pressure regulator, gauge, and 5 micron filter
• Reservoir Block with eight cryo-tube reservoirs
• 8-channel Perfusion Pencil (specify removable tip size)
• Instruction Manual
• One year limited warranty covering both parts and labor

Manufacturer: AutoMate Scientific
Catalog number: 07-VB-08-xxx
Parent Category: SmartSquirt Micro-Perfusion
Application: SmartSquirt Micro-Perfusion

For full web page, please see https://www.autom8.com/smartsquirt-microperfusion

Download a brochure at https://www.autom8.com/wp-content/uploads/2016/07/SmartSquirt.pdf

Additional information

Weight 19.5725 lbs
Removable Tip

100 µm, 250 µm, 360 µm, zero dead volume

Line Voltage

110V, 220V
