Breadboard 23 x 23″ (can ship by UPS)

Breadboard 23 x 23″ (can ship by UPS)

$1,385.00

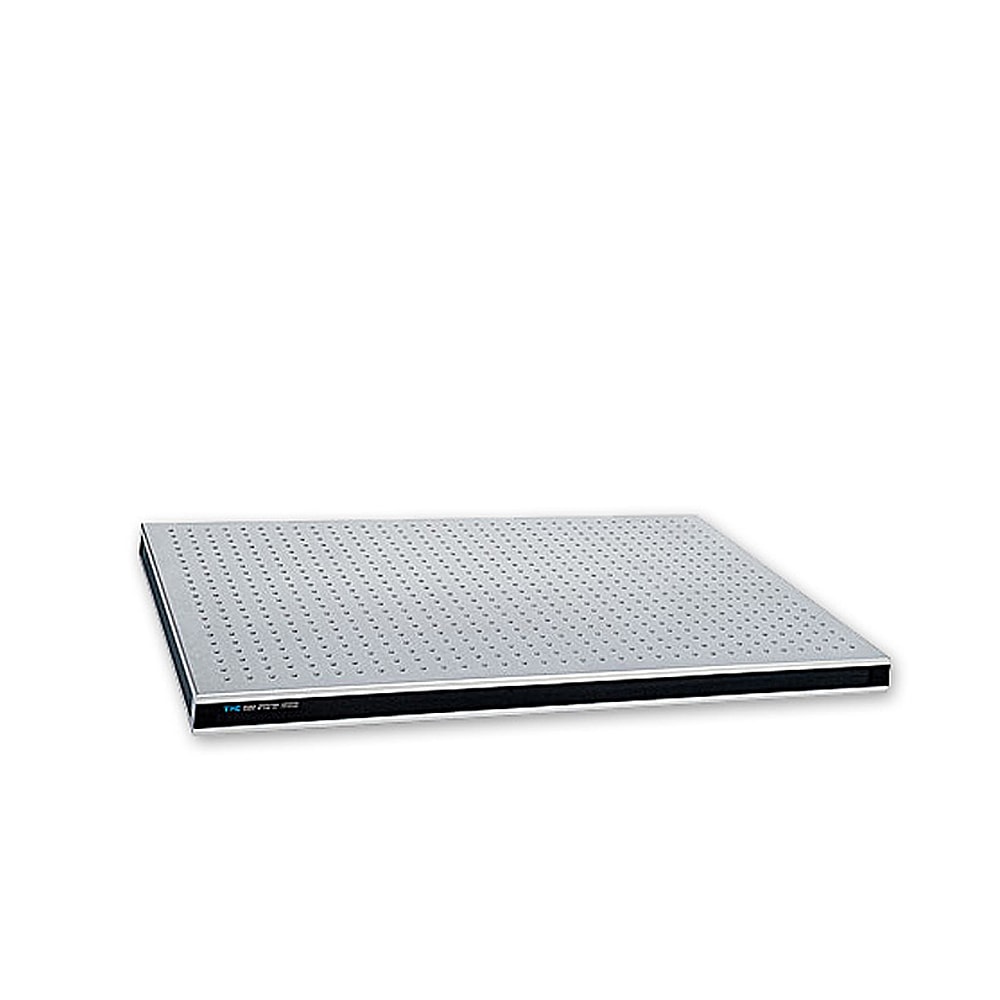

Breadboard 600 x 600 mm 75 Series with M6 holes

SKU: TM-75SSC-113-02 Category:

Description

Another in a long line of TMC innovations, the 75 Series Breadboards minimize both weight and cost. A patented manufacturing technique allows us to form countersunk, tapped holes in a thin top skin of stainless steel. The holes are not drilled or punched, but fabricated in a way that effectively “thickens” the skin in a small ring around the threads. No inserts are used and the tapped holes are 3 threads deep.

These tops have relatively high levels of rigidity, as they utilize our standard steel core. They are ideal when light loads are anticipated and low weight and/or cost are the most crucial factors.

Features

• Ultra-lightweight design weighs less than 9 lbs/ft2 (44 kg/m2).

• Ferromagnetic Stainless steel top and bottom skins.

• Aluminum and carbon steel versions available.

• Very low prices, even in low quantity.

• Formed holes are countersunk and tapped 3 threads.

• Formed holes in top skin add to rigidity.

• CleanTop® individual cups under each hole make the core spillproof.

Manufacturer: TMC
Catalog number: TM-75SSC-113-02
Parent Category: Breadboards
Application: TMC Air Tables

For full web page, please see https://www.autom8.com/tmc-air-tables-overview/breadboards

Download a brochure at https://www.autom8.com/wp-content/uploads/2016/07/All-TMC.pdf

Additional information

Weight 37 lbs
