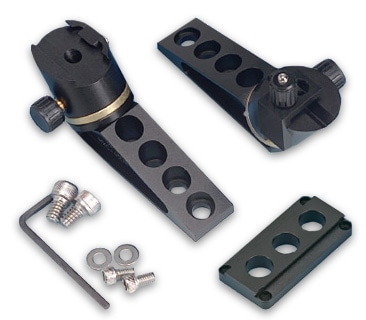

Axon 200/700 Headstage Mount
The MXC-45D’s unique design allows repeatable electrode replacement with a simple but accurate rotating clamp. The top clamp of the MXC-45D is designed to be compatible with Axon CV200B, CV-7A, and HEKA EPC-10 headstages. The rotating portion is configured such that the probe /pipette rotates up and away from the experiment at a 45° angle through a full 180°. The repeatable stop returns to its location with micron level accuracy and the stop’s orientation can be changed simply by loosening a single 1⁄4-20 cap screw.

Probe Clamp
The MXC-45’s unique design allows repeatable electrode replacement with a simple but accurate rotating clamp. The top clamp of the MXC-45 is designed to be compatible with headstage mounting rods from 3- to 10-mm in diameter. The rotating portion is configured such that the probe /pipette rotates up and away from the experiment at a 45° angle through a full 180°. The repeatable stop returns to its location with micron level accuracy and the stop’s orientation can be changed simply by loosening a single 1⁄4-20 cap screw.

Headstage Holders

Headstage Holders

Specifications

  • Unique swing-out design
  • Spring-loaded lock knob
  • Compatible with Axon 200/700 series, HEKA EPC-10, and A-M Systems model 2400
