Bioptechs Objective Options

Home|Temperature Control Overview|Bioptechs Objective Options

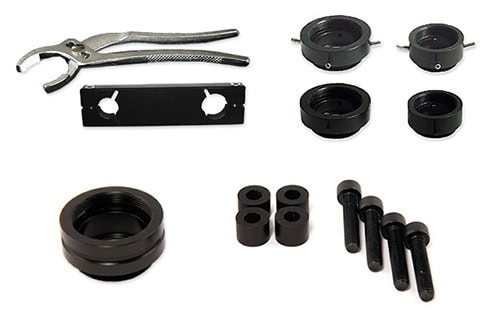

Objective cooling collar, thermal isolator and spacer, stage spacer kit, 8mm spacer, and wrench & pliers.

Objective Options

Objective Heater System

CFCS2 Cooling Collar

The Objective Cooling Collar is an attachment to an objective that provides an isolated pathway through which a refrigerated fluid can flow. this provides an efficient means of cooling the objective. The source of the chilled fluid can be as simple as a dewar of ice water or as sophisticated as an AC powered chiller bath. The removal of heat from the objective is more difficult than heating because you are limited by the thermal transfer efficiency of both the objective and the contact surface of the cooling ring. Therefore, the cooling ring needs to be of sufficient size to work. It is advisable to make sure you have enough room under the stage for the additional diameter required for the cooling collar and tubing. Cooling collars are precision machined to fit specific objectives.

Objective Thermal Isolator & Spacer

Thermal Isolator Spacers

It is necessary to use a thermal isolator to both prevent heat from the nosepiece from entering the objective and to prevent condensation from forming on the lower element. The Bioptechs’ Thermal Isolator mounts between the objective and nosepiece and is made of a material having a low thermal conductivity. It also contains a two sided AR coated window and gas ports through which dry air is pumped to prevent condensation. It is necessary to provide a supply of dry air into the base of the Thermal Isolator. The Thermal Isolator will add 9mm to the height of the objective. Therefore, it is necessary to elevate the stage by the same amount. Bioptechs provides spacers for stage mounts on special order. When the height of a microscope stage is modified to accommodate the addition of a Thermal Spacer to one of the objectives, it is recommended to add spacers to the other objectives on the turret as well.

Note: When ordering an 8mm Objective Spacers you must specify the thread type:

RMS = 0.8″ x 36 tpi = (approximately 20 mm diameter)
25mm x 0.75 mm/thread = (approximately 1″ diameter)

Comparison of the effect of the use of a Thermal Isolator or Spacer

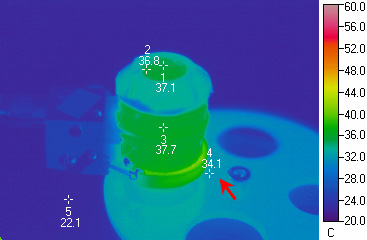

60x objective without thermal isolator

60x objective without thermal isolator

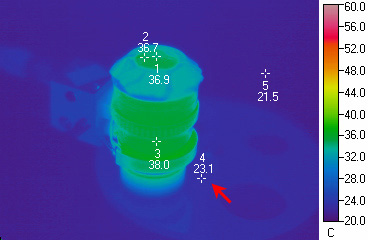

60x objective with thermal isolator

60x objective with thermal isolator

Notice the difference in temperatures of the nosepiece shown (above, top). The objective without the thermal spacer is transferring of heat to the nosepiece. Therefore, more energy has to be applied to compensate for the heat loss as demonstrated by the elevated temperature of the heating band. Although it is possible to overcome the heat loss with more power, it is not recommended due to the possibility of damage to the objective and the fact that the temperature regulation will become more labored. However, the objective with a thermal spacer (above, bottom) demonstrates very little heat loss to the nosepiece and the heater-band is obviously cooler. With less continual heat drain, less energy is required to establish and maintain temperature. Also notice how efficient the objective heater is transferring heat to the objective, you can see the band is significantly cooler. This means there is no excess heat being radiated from the objective heater band.

Stage Spacer Kit

Stage Spacer Kit

This kit provides the necessary hardware to accurately raise the height of a stage 8mm. The kit consists of: (4) 8mm high machined stage spacers (4) 5mm x 25mm allen bolts This kit was designed for the 8mm Thermal Spacer, designated with a groove in the sidewall of the spacer itself. (see picture below) 8mm Stage Spacer Kit Part #: 19-19-01

8mm Objective Spacer

Thermal Isolator Spacers

The Thermal Spacer has a groove around its side-wall to distinguish it from the 9mm version used for Thermal Isolators. It’s only purpose is to thermally isolate the nosepiece of the microscope. It does not have or need gas ports or a window. It will enhance the thermal transfer efficiency of the objective.

Note: When ordering an 8mm Objective Spacers you must specify the thread type:

RMS = 0.8″ x 36 tpi = (approximately 20 mm diameter)
25mm x 0.75 mm/thread = (approximately 1″ diameter)

Objective Wrench & Plier Set

Wrench Pliers

In order to expose sufficient surface for mounting heat transfer devices on some manufacturers’ objectives, it is necessary to remove the outer decorative collar which contains written information such as magnification, N.A., etc. The objective wrench is designed to enable the user to isolate the mechanical stress applied to an objective when removing this collar.

The rotational force applied to the objective must be applied exclusively to the mounting threads and the cover. The wrench is designed with two thread sizes (0.8″ x 36 TPI (RMS) and 25mm x 0.75 mm/thread). It will enable the user to securely bind these threads and provide sufficient leverage for removal of the cover.
