Objective Heater Compatibility

Note: This is not a complete list of all objectives.
If the objective you need is not listed below, or if you have a photo of an objective not shown here, contact us with information or a photo.

Need help?

Click here for instructions on how to size your objective.

Leica100x1xcorweb

Leica

Specs: PL APO
100x/1.40 Oil/0.17/D
Size: Large

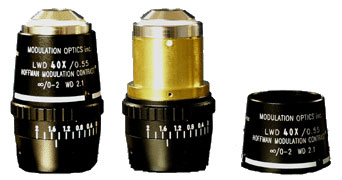

HOFLWD40X

Nikon

Specs: LWD
40x/0.55/Hoffman Modulation Contrast/0-2 WD 2.1
Size: Standard

NIK100x13planflourweb

Nikon

Specs: Plan Fluor
100x/1.40 Oil/0.17/D
Size: Standard

nikplanfluor100xdich

Nikon

Specs: Plan Apo
100x/0.5-1.3 Oil Iris/DIC H/N2/0.17 WD 0.2
Size: Large Note:  Requires thermal isolator.

nikonplanfluor40x130oil

Nikon

Specs: Plan Apo
100x/1.40 Oil /0.17 / PH3 / DM
Size: Medium

planapon60x142oil

Nikon

Specs: Plan Apo
60x/1.42 Oil /0.17 / FN26.5
Size: Medium

NIK10014

Nikon

Specs: Plan Apo
100x/1.40 Oil/DIC H/0.17 WD 0.13
Size: Standard

nik100x140ph3dm

Nikon

Specs: Plan Apo
60x/1.42 Oil /0.17 / FN26.5
Size: Medium

NIK6012

Nikon

Specs: Plan Apo
60x/1.20 WI/DIC H
Size: Standard

Nikplanapo60xa140

Nikon

Specs: Plan Apo
60xA/1.40 Oil/DIC H/0.17 WD 0.21
Size: Large

NIK6014ph3dmweb

Nikon

Specs: Plan Apo
60xA/1.40 Oil/Ph3 DM/0.17 WD 0.21
Size: Large

nikplanapovc60xweb

Nikon

Specs: Plan Apo VC
60x/1.40 Oil/0.17/DIC N2
Size: Large

NIK60x145oiltirfweb

Nikon

Specs: Plan Apo TIRF
60x/1.45 Oil/0.10-0.22 WD 0.13
Size: Medium

NIK60x145TIRF

Nikon

Specs: Plan Apo TIRF
60x/1.45 Oil/0.10-0.22 DIC H
Size: Medium

Nikon40xweb

Nikon

Specs: 40x
Know the exact specifications? Contact us
Size: Standard

Nikon60xweb

Nikon

Specs: 60x
Know the exact specifications? Contact us
Size: Unknown

OLYA10016web

Olympus

Specs: Apo
100x 1.65 Oil/0.17
Size: Unknown

olyuplansapo100x140

Olympus

Specs: UPlanSApo
100x/1.40 Oil/0.17/FN26.5
Size: Medium

olyuplanapo60x120w

Olympus

Specs: UPlanApo
60x/1.20W/0.13-0.21
Note: Suggested thermal isolator
Size: Large

OLY60xuplanapo120wpsf

Olympus

Specs: UPlanApo
60x/1.20W PSF/0.13-0.21
Note:  Suggested thermal isolator
Size: Medium

OLYUPLA340100135

Olympus

Specs: UPlanApo
100x/1.35 Oil/0.17
Note: Requires thermal isolator
Size: Standard

UA34040135

Olympus

Specs: UApo
340/40x/1.35 Oil Iris
Note: Requires thermal isolator
Size: Large

UA340401352

Olympus

Specs: UApo
340/40x/1.15W/0.13-0.25
Size: Standard

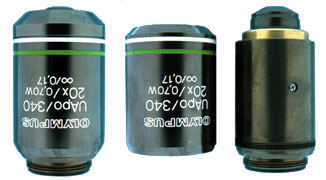

OLYUPA34020XW

Olympus

Specs: UApo
340/20x/0.70W/0.17
Note: Requires thermal isolator
Size: Standard

OLYUPA6090

Olympus

Specs: LUM PlanFI Ir
60x/0.90 W/0
Note: Water dipping lenses do not require the use of an Objective Heater.
Size: None

OLYXLUMPlan20095web

Olympus

Specs: XLUMPlan FI
20x/0.95 W/0
Note: Water dipping lenses usually do not require the use of an Objective Heater. However, due to the large size of this objective and short length of the dipping sleeve, an Objective Heater is recommended.
Size: Medium

OLYPA10014

Olympus

Specs: PlanApo
100x/1.40 Oil
Size: Standard

OLYPA60142

Olympus

Specs: PlanApo
60x/1.40 Oil/0.17
Size: Standard

olympusplanapoN60xtirfmuis2

Olympus

Specs: PlanApo N
60x/1.45 Oil/ 0.13-0.19/FN26.5
TIRFM UIS2 BFP1
Size: Large

OLY60xuplanflNoil

Olympus

Specs: UPlanFl
60x/1.25 Oil/ 0.17/FN26.5
Size: Large

OLYUPAFL100132

Olympus

Specs: UPlanFl
100x/1.30 Oil/0.17
Size: Standard

OlyUplanFlN100x130oil

Olympus

Specs: UPlanFL N
100x/1.30 Oil/ 0.17/FN26.5
Size: Medium

40XOLYHOF

Olympus

Specs: Hoffman Modulation Contrast HMC
40x/WD LCA/0.55n/INF/1
Size: Standard

OLYHOF40

Olympus

Specs: Unknown
Size: Standard-1 Standard-2

OLY40X06PH2

Olympus

Specs: LCPlanFl
40x/0.60 Ph2/
Size: Standard

ZLDAP4006ZORRPH2

Zeiss

Specs: LD ACHROPLAN
40x/0.60 Korr Ph2/0-2
Size: Large

No photo

Zeiss

Specs: C-APROCHROMAT
40x/1.2 W Korr/0.15-0.17
Size: Large

ZEISSCAPO6312WATER1

Zeiss

Specs: LD ACHROPLAN
40x/0.60 Korr Ph2/0-2
Size: Large

zeissplanapochromat63x140oi

Zeiss

Specs: Plan-APOCHROMAT
63x/1.40 Oil
Size: Standard

zeissachroplan63x090Wph3web

Zeiss

Specs: ACHROPLAN
63x/0.90 W/PH3
Note: Water dipping lenses do not require the use of an objective heater.
Size: None

zeissachroplan100x125oil017

Zeiss

Specs: ACHROPLAN
100x/1.25 Oil/0.17
Size: Standard
