TMC Faraday Cages

Home|TMC Air Tables Overview|TMC Faraday Cages

Industry-standard electrical noise protection.

Faraday Cages, Benchtop

Type II Faraday Cage

The Type II Faraday Cage offers improved access and simplified assembly. The “window-shade” type retracting front panel is easier to operate than hinged doors and causes less disturbance when adjusted. This front panel may be positioned anywhere between fully opened and closed and stays in position without a fastener. The front door is shipped assembled and the entire unit may be assembled in a few minutes with a screwdriver (provided).

This cage incorporates the same stainless steel frame and copper-mesh material as previous versions. It mounts to (and requires) TMC’s full-perimeter enclosures and mounts to our CleanBench™.

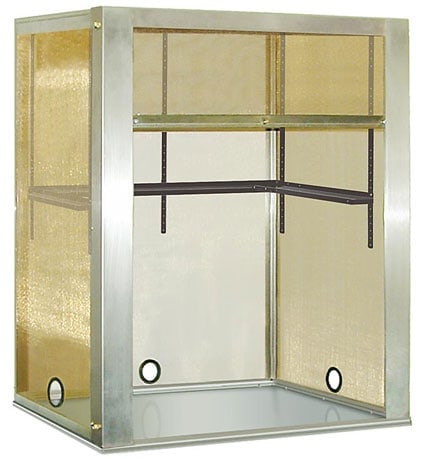

Our 40 in. tall Type II Faraday Cages now include a convenient 2 in. diameter hole in the base of the side and rear panels. This feature eases cable interface to the interior of the cage. The hole is sleeved with a rounded rubber liner to shield sharp edges and assure long life. In addition, we now offer a new version of our armrest pads that is compatible with our cages. These armrest pads are virtually identical to our non-Faraday Cage pads but adhere with Velcro straps rather than clips or magnets.

Faraday Cages

BenchTop Faraday Cage

Until recently, our Faraday Cages have only been available as part of a complete TMC vibration isolation table system. The cages required our Perimeter Enclosure option and could not be assembled without a TMC 63-500 Series Vibration Isolation Table as its base.

We now offer the same line of 40 in. tall cages with a baseplate which allows the cage to be used on a bench-top without a corresponding TMC table. The base of the cage is a reinforced stainless steel plate which can support a compact vibration isolation system, microscope, or other instrument.

Type II Faraday Cage Ordering Chart

BenchTop Faraday Cage Ordering Chart

Faraday

Accessory Ordering Chart

Faraday

Images and Text Copyright TMC, reprinted with permission.

Shop Now
Brochure
Manual

Options & Features

Type II Cages

  • New 2 in. diameter holes for cable passage
  • Optional armrest pads are now available with Faraday Cages
  • Optional “U” shaped hanging shelf
  • Optional non-isolated sliding shelf oriented front-to-rear
  • Full perimeter enclosure required to mount cage

BenchTop Faraday Cage

  • BenchTop cage includes stainless steel baseplate
  • Bench-mounted cage does not require vibration table
