Brain slice pre-incubator single ring with optional compartments
- Slices maintained for many hours prior to transfer to recording chamber
- Simple to set up and maintain
- Quick-change nylon net
The Brain Slice Keeper has been designed to pre-incubate brain slices prior to transfer into recording chambers. It consists of a pair of closely fitting acrylic rings, upper and lower, between which is wedged a sheet of nylon netting (see bottom photo).
In operation, the BSK1 is totally immersed in an ACSF-filled purpose designed holding vessel (BSKV) into which a 95% O2, 5% CO2 gas mixture is supplied with a ceramic bubbler. The bubbles rising from the base of the BSKV saturate the ACSF and provide constant circulation of medium to the slices which rest on the nylon net. Since the lower ring of the BSK1 carries a deflector shield, bubbles are prevented from being trapped under the slices and ensure continuous circulation of medium. Slices remain viable for many hours in these conditions.
The BSK1 together with the BSKV holding vessel can easily be placed into a water bath for regulating the incubating temperature as desired. The typical fluid volume with BSK1 plus BSKV is 220ml.
Schematic LEFT: Arrangement of BSK1 hooked into the holder BSKV.
Schematic RIGHT: Oxygen bubbles rising from the ceramic air stone A induce circulation of aCSF to the top ring B holding brain slices on the netting. Circulation continues down on to the slices preventing movement and then out via open corners of deflector at C and D. The deflector has a curved half-cylinderical surface with closed ends so that bubbles can not reach the underside of the net carrying brain slices.
Components of BSK1 Slice Keeper and Holder BSKV
[A] BSKV consists of a 200ml trough fitted with an air stone bubbler and needle valve regulator for fine control of gas
[B] View of BSKV from above
[C] BSKV with BSK1 in place
[D] viewed from above

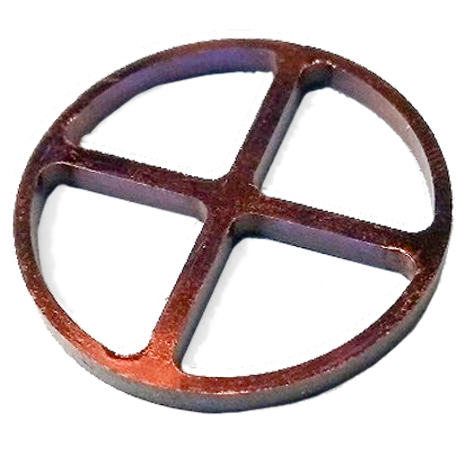

BSK-D Spares

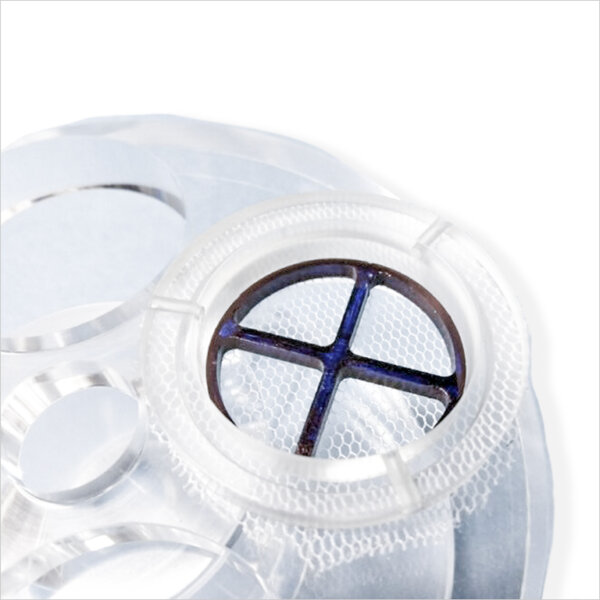

This divider is inserted into the slice keeper to allow separation into quadrants.
References – Brain Slice Keeper
- Whole-Cell Patch-Clamp Electrophysiology to Study Ionotropic Glutamatergic Receptors and Their Roles in Addiction Glutamate Receptors, pp 107-135, 02 February 2019Jonna M. Leyrer-Jackson, M. Foster Olive, Cassandra D. Gipson
- The Nicotinic Acetylcholine Receptor {alpha}5 Subunit Plays a Key Role in Attention Circuitry and Accuracy J. Neurosci. 2010; 30(27): p. 9241-9252Craig D. C. Bailey, Mariella De Biasi, Paul J. Fletcher, and Evelyn K. Lambe
- The abnormal firing of Purkinje cells in the knockin mouse model of DYT1 dystonia Brain Research Bulletin, September 2020Yuning Liu, Hong Xing, Bradley J. Wilkes, Fumiaki Yokoi, Huanxin Chen, David E. Vaillancourt, Yuqing Li
- Studies on CRMP2 SUMOylation-deficient transgenic mice identify sex-specific NaV1.7 regulation in the pathogenesis of chronic neuropathic pain Biorxiv, April 2020Aubin Moutal, Song Cai, Jie Yu, Harrison J. Stratton, Aude Chefdeville, Kimberly Gomez, Dongzhi Ran, Cynthia L. Madura, Lisa Boinon, Maira Soto, Yuan Zhou, Zhiming Shan, Lindsey A. Chew, Kathleen E. Rodgers, Rajesh Khanna
- Preparation of Rat Organotypic Hippocampal Slice Cultures Using the Membrane-Interface Method Patch Clamp Electrophysiology. Methods in Molecular Biology, vol 2188. Humana, New York, NY. October 2020Timothy W. Church, Matthew G. Gold
- Preparation of Acute Brain Slices Using an Optimized N-Methyl-D-glucamine Protective Recovery Method Jove, Issue 132, e53825, Feb 2018Ting, J. T., Lee, B. R., Chong, P., Soler-Llavina, G., Cobbs, C., Koch, C., Zeng, H., Lein, E.
- Opening of KATP Channel Regulates Tonic Currents From Pyramidal Neurons in Rat Brain Canadian Journal of Neurological Sciences, Vol. 44, Issue 6 November 2017, pp. 718-725Zhongxia Li, Jiangping Wang, Huimin Yu and Kewen Jiang
- Neocortical Microdissection at Columnar and Laminar Resolution for Molecular Interrogation Current Protocols in Neuroscience, Vol. 86, Issue 1, January 2019Koen Kole, Tansu Celikel
- Impaired Cholinergic Excitation of Prefrontal Attention Circuitry in the TgCRND8 Model of Alzheimer's Disease J. Neurosci. 2015; 35(37): p. 12779-12791Eliane Proulx, Paul Fraser, JoAnne McLaurin, and Evelyn K. Lambe
- h-Channels Contribute to Divergent Intrinsic Membrane Properties of Supragranular Pyramidal Neurons in Human versus Mouse Cerebral Cortex Neuron, Vol. 100, Issue 5, Pages 1194-1208.e5, December 2018Brian E. Kalmbach, Anatoly Buchin, Brian Long, Jennie Close, Anirban Nandi, Jeremy A.Miller, Trygve E. Bakken, Rebecca D.Hodge, Peter Chong, Rebecca de Frates, Kael Dai, Zoe Maltzer, Philip R. Nicovich, C. Dirk, Keene, Daniel L. Silbergeld, Ryder P. Gwinn, Charles Cobbs, Andrew L.Ko, Jonathan T.Ting
- Developmental Excitation of Corticothalamic Neurons by Nicotinic Acetylcholine Receptors J. Neurosci. 2008; 28(35): p. 8756-8764Sameera M. Kassam, Patrick M. Herman, Nathalie M. Goodfellow, Nyresa C. Alves, and Evelyn K. Lambe
- Betaine in the Brain: Characterization of Betaine Uptake, its Influence on Other Osmolytes and its Potential Role in Neuroprotection from Osmotic Neurochemical Research, Vol. 42, Issue 12, pp 3490–3503, December 2017Leena S. Knight, Quinn Piibe, Ian Lambie, Christopher Perkins, Paul H. Yancey
- ARCAgRP/NPY Neuron Activity Is Required for Acute Exercise-Induced Food Intake in Un-Trained Mice Front. Physiol., May 2020Wyatt Bunner, Taylor Landry, Brenton Thomas Laing, Peixin Li, Zhijian Rao, Yuan Yuan and Hu Huang
- Apamin Improves Prefrontal Nicotinic Impairment in Mouse Model of Alzheimer's Disease Cerebral Cortex, bhz107, June 2019É Proulx, S K Power, D K Oliver, D Sargin, J McLaurin, E K Lambe
- Alterations of the electrophysiological properties from cortical layer 5 pyramidal neurons in temporary rapamycin-treated rodent brain slices Neuroscience Letters, Vol. 612, 26 January 2016, Pages 80-86Keming Rena, Lijuan Chen, Guoxia Sheng, Jiangping Wang, Xiaoming Jin, Kewen Jiang
- AgRP/NPY Neuron Excitability Is Modulated by Metabotropic Glutamate Receptor 1 During Fasting Front Cell Neurosci. 2018; 12: 276.Brenton T. Laing, Peixin Li, Cameron A. Schmidt, Wyatt Bunner, Yuan Yuan, Taylor Landry, Amber Prete, Joseph M. McClung, and Hu Huang
- A robust ex vivo experimental platform for molecular-genetic dissection of adult human neocortical cell types and circuits Nature Scientific Reports, Vol. 8, Article number: 8407 (2018)Jonathan T. Ting, Brian Kalmbach, Peter Chong, Rebecca de Frates, C. Dirk Keene, Ryder P. Gwinn, Charles Cobbs, Andrew L. Ko, Jeffrey G. Ojemann, Richard G. Ellenbogen, Christof Koch & Ed Lein
