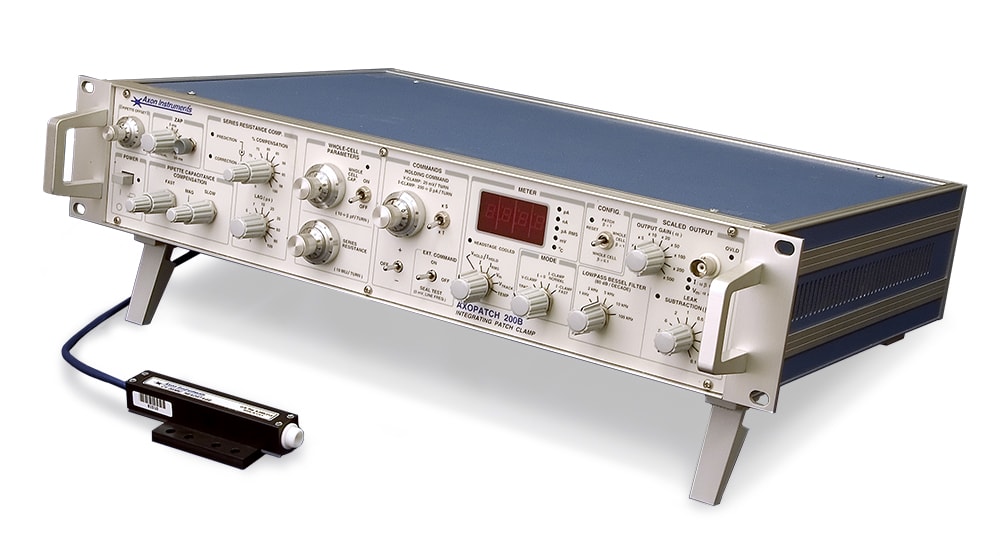

Axopatch 200B Capacitor Feedback Patch Clamp Amplifier
The Axopatch 200b includes all of the features of the 200A, and a few more. Enhancements include three recording configurations in a single headstage (one patch and two whole cell ranges, with capacitance compensation ranges of 100 pF and 1000 pF), increased voltage and current command ranges (to ±1V) for electrochemical measurements, built-in capacitance dithering capability for capacitance measurements, and addition of series resistance compensation to the current clamp circuitry to improve performance. Seal Test now provides current steps in current clamp mode as well as voltage steps in voltage clamp mode. Leak Subtraction is now more sensitive in the most important resistance range. The recording bandwidth has been doubled to up to 100 kHz. Command and bandwidth ranges are larger. Series Resistance compensation is now active in current clamp as well as in voltage clamp mode to enable bridge balance to be used.
A Superb Instrument
The Axopatch 200B is the latest version of the premier Axon Instruments patch-clamp amplifier incorporating the innovative Capacitor-Feedback technology for single-channel recording, and resistive-feedback for whole-cell recording, providing the best possible performance for single-channel and whole-cell patch clamping. Convenient features include ZAP (to rupture patches when going whole cell), dual-speed current clamp (to allow faster current clamping in small cells), Holding Command to set voltage commands in voltage clamp and current commands in current clamp, and a choice of three gain settings on the dedicated current output (for patch, whole-cell and loose-patch modes). The Axopatch 200B provides the lowest-noise single channel recording available. The amazingly low open-circuit noise of 0.13 pA rms (10 kHz) increases to only 0.145 pA rms when a patch-pipette holder is attached to the headstage input and the pipette capacitance is fully compensated (to eliminate capacitance charging transients). The power of capacitor-feedback technology is shown below (Figure 1): capacitor feedback at room-temperature is clearly superior to resistive feedback technology; cooled capacitor-feedback is even better! An unprecedented achievement in the field of ultra-low noise recordings!

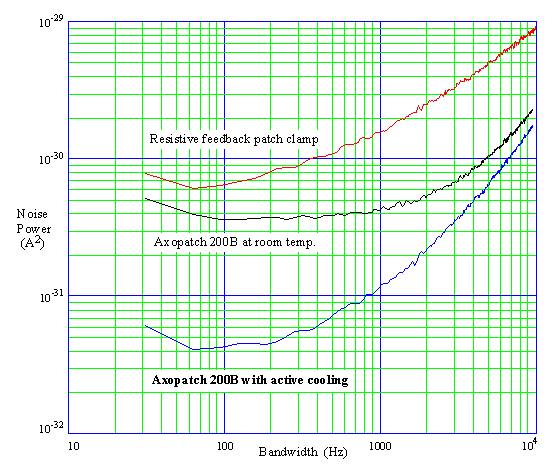

Shown above: Noise spectra from patch-clamp amplifiers showing the noise contribution of the amplifier. Top trace, a resistive headstage; Middle trace, Axopatch 200B at room temperature; Bottom trace, Axopatch 200B with circuitry cooled to -20° C. Even at room temperature, the noise performance of the capacitor-feedback amplifier is clearly better than the resistor-feedback amplifier. Cooling dramatically reduces the noise even further, for the lowest noise ever.
Unparalleled Performance, Utility and Ease of Use
Included: Efficient controls for whole-cell capacitance compensation, a unique “super-charging” form of series-resistance compensation that complements the conventional “correction” form, and a variable LAG control; output gain with 1000-fold dynamic range; 4-pole Bessel filter; onboard leak subtraction; dual external-command inputs; versatile panel meter displaying Holding Command, rms current noise, membrane potential, tracking potential and current at the headstage input; telegraphic output of values for output gain, filter frequency, headstage mode (gain) and measured cell capacitance; ZAP; and dual-speed current clamp. Also, with the Axopatch 200B the bath is grounded for convenience of use and straightforward addition of command and compensation potentials.
Quiet Single-Channel Recording
Integrating Headstage Mode
With unprecedented low noise and superb linearity, the Axopatch 200B capacitor-feedback integrating headstage is ideal for measuring sub-picoamp current signals. Through the use of this technology the electronic circuit noise has been reduced to such a level that the noise inherent in the components themselves has become significant. In the Axopatch 200B, we have introduced active cooling of the critical circuit components in order to reduce the thermal noise and so lowered the noise contribution of the amplifier itself to the lowest levels possible. The Axopatch 200B is the ultimate low-noise amplifier.
Headstages useful in artificial bilayer experiments must be stable with large input-capacitance loads. The Axopatch 200B is rock solid with an input capacitance of 1000 pF. Furthermore, the integrating technology in the Axopatch 200B enables the bilayer voltage to be stepped very quickly. There are two reasons for this. First, the integrator has an inherently large dynamic range that allows it to transiently pass currents of several microamperes. Second, during large command voltage steps the integrator enters the reset state. In this state, the headstage continues to operate as a voltage-clamp amplifier but with a very low feedback resistance. For the few ms that the integrator is in the reset state it can pass up to 1 mA to rapidly charge the bilayer capacitance.
Superb Whole-Cell Performance
Resistive Headstage Mode
In whole-cell recording more current noise is produced by the cell and the environment than by the patch clamp amplifier. Hence, the benefits of a low-noise capacitor-feedback headstage cannot be effectively utilized in whole-cell mode. For this reason, the Axopatch 200B uses traditional resistor feedback headstage electronics for the whole-cell mode of patch clamp recording. The CV 203BU headstage includes two feedback resistors to provide a wide range of current-passing capacity in the whole-cell mode. The 500 megohm feedback resistor (ß=1) provides both low noise and a large current passing ability (20 nA). For larger currents, one can switch to the 50 megohm feedback-resistor (ß=0.1) to pass up to 200 nA.
Series Resistance Compensation
There are two goals of series resistance compensation, Prediction and Correction.
Series Resistance Prediction
By transiently increasing the size of the command voltage step (“supercharging”), membrane potential is made to achieve its assigned value as rapidly as possible.
Series Resistance Correction
To eliminate error due to the voltage drop across the electrode and to improve the bandwidth of the recording, positive feedback is applied to increase the command potential by adding a signal proportional to the measured current to the command input of the headstage. Series Resistance Prediction and Correction may be used together or separately on the Axopatch 200B.
Dual-Speed Current Clamp
The Axopatch 200B employs a dual-speed current clamp to optimize speed and stability. The choice of speeds depends on pipette resistance. For pipette resistances above 10 megohm, the I-Clamp FAST mode can be employed to obtain a rise time of 10 µs under many experimental conditions. The I-Clamp NORMAL mode guarantees stability for any pipette resistance above 1 megohm. In addition, current clamp to zero current (I=0 mode) is available, as is a slower clamp to zero current (Track mode) useful for following slow changes in pipette offset while approaching a cell before seal formation. In addition, the Axopatch 200B includes series resistance compensation in current clamp that allows for correction of voltage errors due to the pipette resistance.
Capacitor-Feedback Patch Clamp
The Axopatch 200B offers the lowest-noise patch-clamp amplifier technology. The open circuit (amplifier) noise in patch-mode has been reduced to unprecedentedly low levels: < 15 femtoAmps (rms) below 1 kHz bandwidth, < 60 femtoAmps (rms) below 5 kHz bandwidth, and < 130 femtoAmps (rms) below 10 kHz bandwidth, all measured with an 8-pole Bessel filter. Noise is still low (145 femtoAmps rms below 10 kHz bandwidth) with a pipette holder attached. This translates into lower noise during actual recordings; this noise performance is achieved in part by cooling the input field-effect transistors inside the headstage to well below 0° C.
Better noise performance is only part of the story. The redesigned, slim headstage improves electrode access to the preparation by making it easier to fit under your microscope. We now include BOTH whole-cell ranges (previously available only in two separate headstages) in one headstage.
Axopatch 200B is shipped with the following:
- Axopatch 200B amplifier
- CV-203BU headstage (Part number 1-CV 203BU)
- US Power cord (Part number 1-3010-0011)
- European power cord, CEE7/7 (Part number 1-3010-0013)
- Accessory kit (Part number1-2050-0301) containing: ACC fuse (Part number 1-2050-0014), Baseplate for attaching headstages to manipulator (Part number 1-5200-0100), Electrode Holder (Part number 1-HL-U), Series Resistance Dither Box (Part number 1-DR-1), Patch-1U Model Cell (Part number 1-PATCH-1U), Manual (Part number 1-2500-0121)
