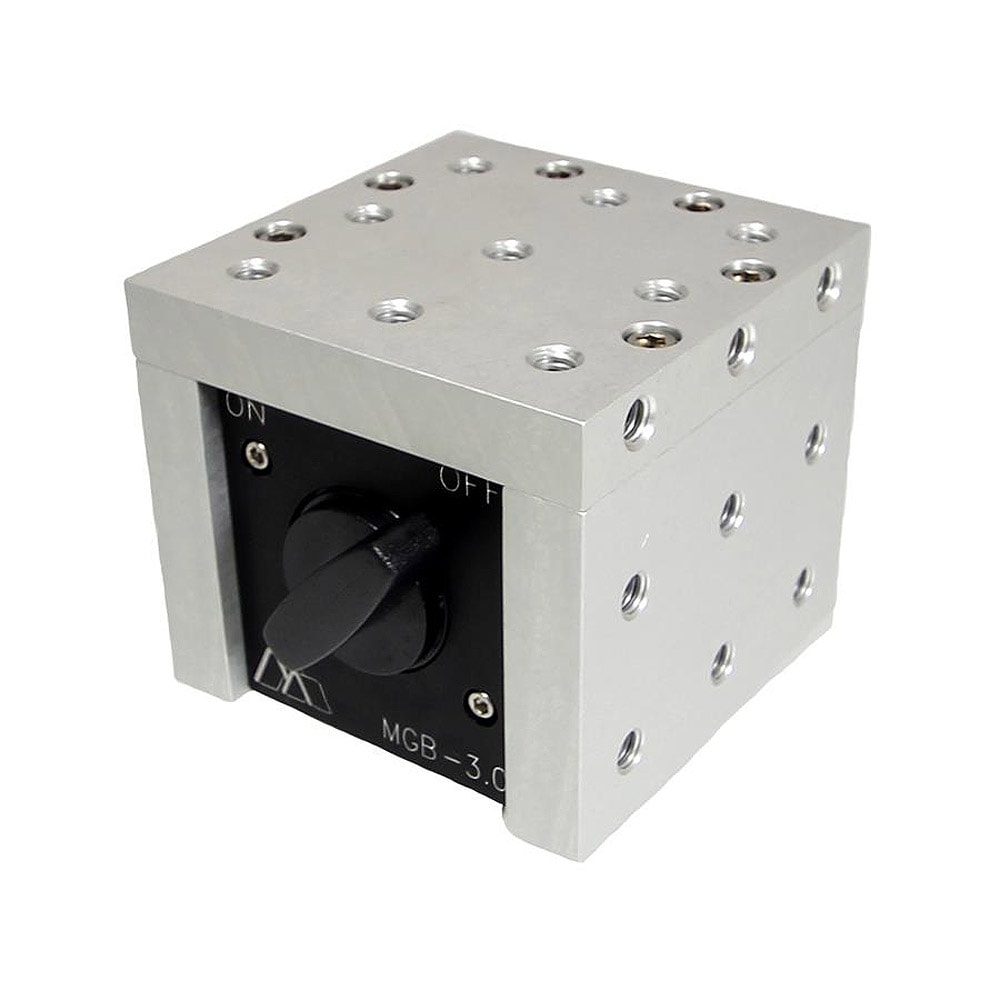

Siskiyou Magnetic base, 3.0 inch

Description

The MGB-3.0 magnetic base is designed to be used as a stable mounting platform for isolation tables lacking mounting holes, or on any magnetic surface. The 3.0-inch x 3.0-inch footprint has greater surface area and is more
stable than similar magnetic bases. The magnetic field of the MGB-3.0 is activated through 45° rotation of a manual lever that is clearly marked ON and OFF.
The MGB-3.0’s 3.0-inch x 3.0-inch mounting surface is the perfect match for mounting our 331 stages, 831 stages, MX312P platforms, or MX3T tilt platforms. Three sides of the magnetic base have nine 1⁄4-20 mounting holes for added attachment flexibility.
The MGB-3.0 is also compatible with our MX-AP series top adapter plates. These adapter plates allow the experimenter to remove and replace equipment accurately and simply by loosening two flathead screws.

■ Multiple mounting surfaces

■ Simple on / off lever

■ Solid holding force

Performance Specifications
Holding force 70 lbs

Manufacturer: Siskiyou
Catalog number: SD-MGB-3.0
Parent Category: Towers
Application: Siskiyou Mechanicals
